BDO-SERIES
(X/Y AXES LINEAR GUIDE WAYS,
Z AXIS BOX WAY) |
|
|
VERTICAL MACHINING CENTER 》LINEAR GUIDE WAYS |
|

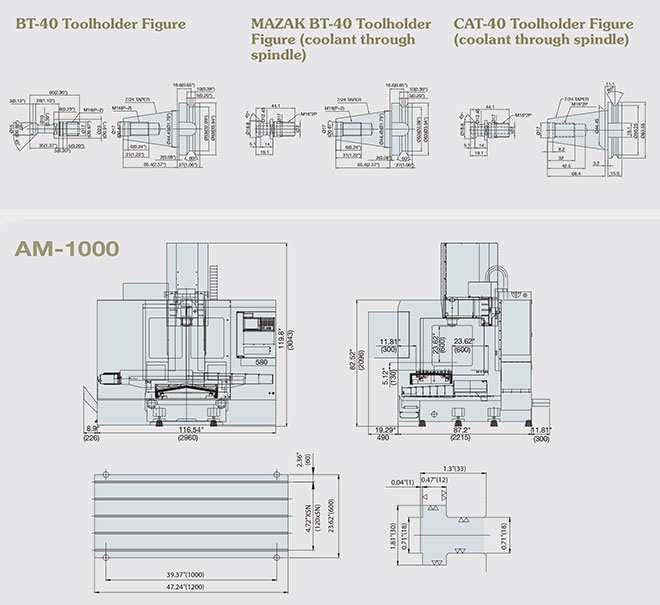

AM-1000
Precision Mould Machining Center
- Adopt synchronization with European and Japanese design – strong structure of
large span column.
- Adopt Japan made SHOWA brand off- pressure lubricant oil discharge and durable
aluminum tubing to ensure the accuracy and stability.
- The ultra wide door design -opening width of 1360mm - to facilitate the operator to
up and down the fixture and workpiece.
- Large ball screw design - Ø45 mm double nut precision fine ball screws
- High texture upright fully enclosed splash guard, good looks and neat appearance.
- Switzerland Schneeberger oversized 45mm Roller-Rail Linear Guideway.
- Extra large Z-axis motor 7.0KW (no counterweight design)
- Large processing range-Y travel 600mm
- Precision double nut ball screw - rigidity, large torque,
and good accuracy.
- Precision high-speed spindle - high-speed direct drive
spindle supplied by MIRL.
|
|
High-speed direct-drive spindle
- Spindle large span design with precision angular
contact ball bearing, high-speed, high-precision
design.

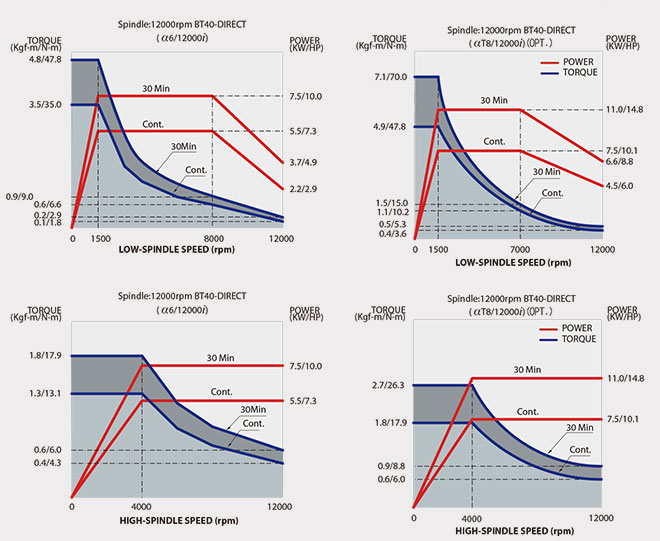

- Direct drive spindle 10,000 / 12,000 / 15,000 rpm,
low noise, minimum vibration, the optimization of the
cutting surface.
|
|
Three axes using the large widening
strong roller-rail linear guideways
- The three axes were adopted Switzerland Schneeberger
strength, precision roller-rail linear guideways.
- X-Y-Z-axis is equipped with a large 45-45-45mm rollerrail
linear guideways.
- Ensure that high level mold heavy cutting rigidity and
precision profile curve
|
|
Simple tool length measurement device (optional accessories)
Metron T24E device is most commonly used for the measurement of the drill and
tapping, the probe is used to determine the length of the tool, this simple, inexpensive and high-efficiency device, via automatically read into the tool length to significantly reduce the tool set time.
|
|
Humanized
operation interface
- Rotatable display panel
design for easy operation and
adjustment.
- Storage compartment design.
- Separate handwheel design,
easy to run test.
|
|
The Chain Type
Chip Conveyor
(optional
accessories)
Can quickly remove the iron chips come from processing, keep the machine clean and to keep some parts of the machine functioning properly.
|
|
|
|
